BMW 4 Series Coupé (G22), technical data

THE 4

THE BMW 4 SERIES COUPÉ:
ENGINES & TECHNICAL DATA.

Discover the powerful petrol and diesel engines as well as the dimensions and other technical data of the BMW 4 Series Coupé.

Read more
THE 4 THE BMW 4 SERIES COUPÉ:<br/>ENGINES & TECHNICAL DATA.

TECHNICAL DATA OF THE BMW 4 SERIES COUPÉ.

System Power

Powertrain type Petrol
Power in Kw 135 (184)
Torque in Nm 300
Gearbox 8-speed, automatic
Drivetrain Rear-wheel drive

Motor

Cylinder/ Valves per cylinder 4 / 4
Displacement in cm³ 1,998
Internal combustion engine power in kW 135 (184) / 5000 - 6500
Max torque(Nm) per 1/min 300 / 1350 - 4000

Performance

Maximum speed in km/h 240
Acceleration 0–100 km/h in s 7.5

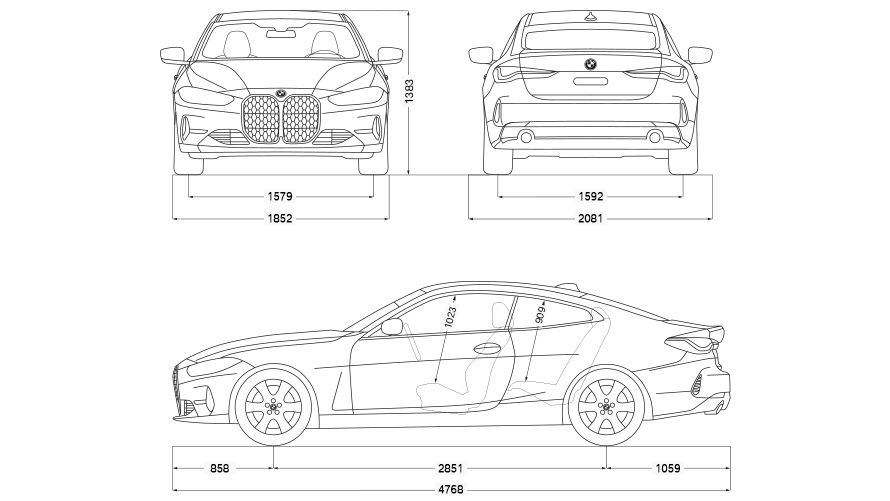

Measurements

Length/Width/Height 4,768 / 1,852 / 1,383
Width incl. mirrors (driver / passenger side) in mm 2081 (1046 / 1035)
Wheelbase in mm 2,851 / 11.4
Ground clearance in mm 127

Weight

Curb weight in kg 1,600
Maximum weight in kg 2,015
Permitted load in kg 490
Permitted Axel load front/rear in kg 970 / 1,120
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 440

Wheels

Tire front 225/40 R19 93 Y XL
Tire rear 255/35 R19 96 Y XL
Rim front 8Jx19 LM
Rim rear 8,5Jx19 LM

Consumption

Consumption overall in l/100km 6.4
Co2 overall in g/km 146
Fuel capacity in l 59

System Power

Powertrain type Petrol
Power in Kw 190 (258)
Torque in Nm 400
Gearbox 8-speed, automatic
Drivetrain Rear-wheel drive

Motor

Cylinder/ Valves per cylinder 4 / 4
Displacement in cm³ 1,998
Internal combustion engine power in kW 190 (258) / 5000 - 6500
Max torque(Nm) per 1/min 400 / 1550 - 4400

Performance

Maximum speed in km/h 250
Acceleration 0–100 km/h in s 5.8

Measurements

Length/Width/Height 4,768 / 1,852 / 1,383
Width incl. mirrors (driver / passenger side) in mm 2081 (1046 / 1035)
Wheelbase in mm 2,851 / 11.4
Ground clearance in mm 127

Weight

Curb weight in kg 1,620
Maximum weight in kg 2,030
Permitted load in kg 485
Permitted Axel load front/rear in kg 980 / 1,120
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 440

Wheels

Tire front 225/40 R19 93 Y XL
Tire rear 255/35 R19 96 Y XL
Rim front 8Jx19 LM
Rim rear 8,5Jx19 LM

Consumption

Consumption overall in l/100km 6.6
Co2 overall in g/km 151
Fuel capacity in l 59

System Power

Powertrain type Petrol
Power in Kw 285 (387)
Torque in Nm 500
Gearbox 8-speed, automatic
Drivetrain All-wheel drive

Motor

Cylinder/ Valves per cylinder 6 / 4
Displacement in cm³ 2,998
Internal combustion engine power in kW 285 (387) / 5800 - 6500
Max torque(Nm) per 1/min 500 / 1800 - 5000

Performance

Maximum speed in km/h 250
Acceleration 0–100 km/h in s 4.5

Measurements

Length/Width/Height 4,770 / 1,852 / 1,393
Width incl. mirrors (driver / passenger side) in mm 2081 (1046 / 1035)
Wheelbase in mm 2,851 / 12
Ground clearance in mm 129

Weight

Curb weight in kg 1,815
Maximum weight in kg 2,245
Permitted load in kg 505
Permitted Axel load front/rear in kg 1,110 / 1,190
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 440

Wheels

Tire front 225/45 R18 95 Y XL
Tire rear 255/40 R18 99 Y XL
Rim front 7,5Jx18 LM
Rim rear 8,5Jx18 LM

Consumption

Consumption overall in l/100km 7.8
Co2 overall in g/km 178
Fuel capacity in l 59

System Power

Powertrain type Petrol
Power in Kw 353 (480)
Torque in Nm 550
Gearbox 6-speed, manual
Drivetrain Rear-wheel drive

Motor

Cylinder/ Valves per cylinder 6 / 4
Displacement in cm³ 2,993
Internal combustion engine power in kW 353 (480) / 6,250
Max torque(Nm) per 1/min 550 / 2650 - 6130

Performance

Maximum speed in km/h 250
Acceleration 0–100 km/h in s 4.2

Measurements

Length/Width/Height 4,794 / 1,887 / 1,393
Width incl. mirrors (driver / passenger side) in mm 2081 (1046 / 1035)
Wheelbase in mm 2,857 / 12.2
Ground clearance in mm 120

Weight

Curb weight in kg 1,775
Maximum weight in kg 2,155
Permitted load in kg 455
Permitted Axel load front/rear in kg 1,075 / 1,135
Luggage capacity in l 440

Wheels

Tire front 275/40 ZR18 (103Y) XL
Tire rear 285/35 ZR19 (103Y) XL
Rim front 9,5Jx18
Rim rear 10,5Jx19

Consumption

Consumption overall in l/100km 10.1
Co2 overall in g/km 231
Fuel capacity in l 59

System Power

Powertrain type Petrol
Power in Kw 375 (510)
Torque in Nm 650
Gearbox 8-speed, automatic
Drivetrain Rear-wheel drive

Motor

Cylinder/ Valves per cylinder 6 / 4
Displacement in cm³ 2,993
Internal combustion engine power in kW 375 (510) / 6,250
Max torque(Nm) per 1/min 650 / 2750 - 5500

Performance

Maximum speed in km/h 250
Acceleration 0–100 km/h in s 3.9

Measurements

Length/Width/Height 4,794 / 1,887 / 1,393
Width incl. mirrors (driver / passenger side) in mm 2081 (1046 / 1035)
Wheelbase in mm 2,857 / 12.2
Ground clearance in mm 120

Weight

Curb weight in kg 1,800
Maximum weight in kg 2,155
Permitted load in kg 430
Permitted Axel load front/rear in kg 1,075 / 1,135
Luggage capacity in l 440

Wheels

Tire front 275/40 ZR18 (103Y) XL
Tire rear 285/35 ZR19 (103Y) XL
Rim front 9,5Jx18
Rim rear 10,5Jx19

Consumption

Consumption overall in l/100km 9.6
Co2 overall in g/km 221
Fuel capacity in l 59

System Power

Powertrain type Petrol
Power in Kw 375 (510)
Torque in Nm 650
Gearbox 8-speed, automatic
Drivetrain All-wheel drive

Motor

Cylinder/ Valves per cylinder 6 / 4
Displacement in cm³ 2,993
Internal combustion engine power in kW 375 (510) / 6,250
Max torque(Nm) per 1/min 650 / 2750 - 5500

Performance

Maximum speed in km/h 250
Acceleration 0–100 km/h in s 3.5

Measurements

Length/Width/Height 4,794 / 1,887 / 1,394
Width incl. mirrors (driver / passenger side) in mm 2081 (1046 / 1035)
Wheelbase in mm 2,857 / 12.6
Ground clearance in mm 121

Weight

Curb weight in kg 1,850
Maximum weight in kg 2,205
Permitted load in kg 430
Permitted Axel load front/rear in kg 1,120 / 1,150
Luggage capacity in l 440

Wheels

Tire front 275/35 ZR19 (100Y) XL
Tire rear 285/30 ZR20 (99Y) XL
Rim front 9,5Jx19
Rim rear 10,5Jx20

Consumption

Consumption overall in l/100km 10.2
Co2 overall in g/km 232
Fuel capacity in l 59
