Discover the powerful petrol, diesel and hybrid engines as well as the dimensions and other technical data of the BMW X5.

Read more

TECHNICAL DATA OF THE BMW X5.

Select a model

Price from

System Power

Fuel type Driving electric and with petrol
System power in kW (PS) 290 (394)
Max. Torque (Nm) 600
Gearbox 8-speed, automatic
Drive Type All wheel drive

Motor

Cylinder/ Valves per cylinder 6 / 4
Technical capacity in cm3 2,998
Internal combustion engine power in kW 210 (286) / 5000 - 6000
Max torque(Nm) per 1/min 450 / 1500 - 3500

Performance

Top Speed 235
Top Speed Electric 135
Acceleration 5.6

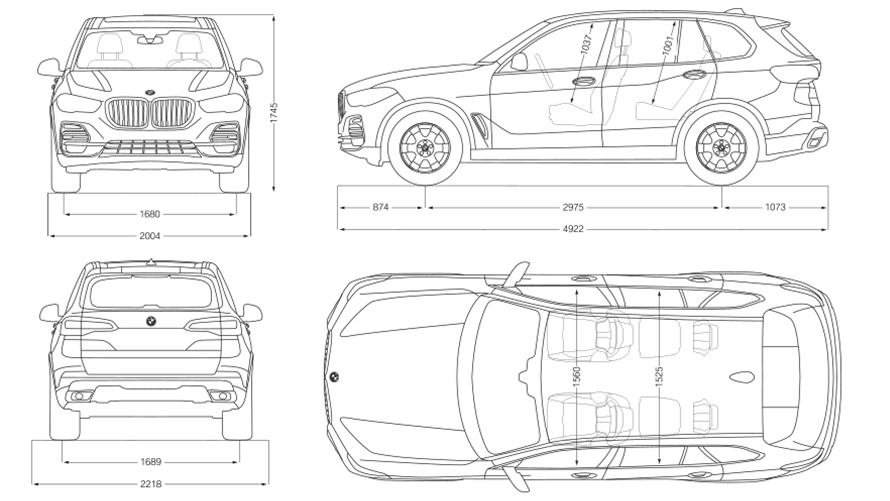

Measurements

Length/Width/Height 4,922 / 2,004 / 1,745
Width incl. mirrors (driver / passenger side) in mm 2218 (1122 / 1096)
Wheelbase in mm/Wheel turn in m 2,975 / 12.6
Ground clearance in mm 214

Weight

Weight not loaded in kg 2,510
Weight Max in kg 3,150
Permitted load in kg 715
Permitted Axel load front/rear in kg 1,390 / 1,810
Allowed unbraked trailer load / drawbar load in kg 750 / 140
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,700
Trunk capacity min.-max. in l 500 - 1720

Wheels

Tire front 275/40 R21 107 Y XL
Tire rear 315/35 R21 111 Y XL
Rim front 9,5Jx21 LM
Rim rear 10,5Jx21 LM

Consumption

Consumption overall in l/100km 2.5
Co2 overall in g/km 56
Electric consumption kwh/km 25.7
Tank capacity in l 69

System Power

Fuel type Petrol
System power in kW (PS) 250 (340)
Max. Torque (Nm) 450
Gearbox 8-speed, automatic
Drive Type All wheel drive

Motor

Cylinder/ Valves per cylinder 6 / 4
Technical capacity in cm3 2,998
Internal combustion engine power in kW 250 (340) / 5500 - 6500
Max torque(Nm) per 1/min 450 / 1500 - 5200

Performance

Top Speed 243
Acceleration 5.5

Measurements

Length/Width/Height 4,922 / 2,004 / 1,745
Width incl. mirrors (driver / passenger side) in mm 2218 (1122 / 1096)
Wheelbase in mm/Wheel turn in m 2,975 / 12.6
Ground clearance in mm 214

Weight

Weight not loaded in kg 2,135
Weight Max in kg 2,800
Permitted load in kg 740
Permitted Axel load front/rear in kg 1,280 / 1,580
Allowed unbraked trailer load / drawbar load in kg 750 / 140
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,700
Trunk capacity min.-max. in l 650 - 1870

Wheels

Tire front 275/40 R21 107 Y XL
Tire rear 315/35 R21 111 Y XL
Rim front 9,5Jx21 LM
Rim rear 10,5Jx21 LM

Consumption

Consumption urban in l/100km 10.9
Consumption non urban in l/100km 8.3 - 8.2
Consumption overall in l/100km 9.2
Co2 overall in g/km 211 - 210
Tank capacity in l 83

System Power

Fuel type Petrol
System power in kW (PS) 390 (530)
Max. Torque (Nm) 750
Gearbox 8-speed, automatic
Drive Type All wheel drive

Motor

Cylinder/ Valves per cylinder 8 / 4
Technical capacity in cm3 4,395
Internal combustion engine power in kW 390 (530) / 5500 - 6000
Max torque(Nm) per 1/min 750 / 1800 - 4600

Performance

Top Speed 250
Acceleration 4.3

Measurements

Length/Width/Height 4,922 / 2,004 / 1,745
Width incl. mirrors (driver / passenger side) in mm 2218 (1122 / 1096)
Wheelbase in mm/Wheel turn in m 2,975 / 12.6
Ground clearance in mm 214

Weight

Weight not loaded in kg 2,325
Weight Max in kg 2,995
Permitted load in kg 745
Permitted Axel load front/rear in kg 1,430 / 1,645
Allowed unbraked trailer load / drawbar load in kg 750 / 140
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,700
Trunk capacity min.-max. in l 650 - 1870

Wheels

Tire front 275/40 R21 107 Y XL
Tire rear 315/35 R21 111 Y XL
Rim front 9,5Jx21 LM
Rim rear 10,5Jx21 LM

Consumption

Consumption urban in l/100km 15.3
Consumption non urban in l/100km 9.5
Consumption overall in l/100km 11.6
Co2 overall in g/km 266
Tank capacity in l 83

System Power

Fuel type Petrol
System power in kW (PS) 460 (625)
Max. Torque (Nm) 750
Gearbox 8-speed, automatic
Drive Type All wheel drive

Motor

Cylinder/ Valves per cylinder 8 / 4
Technical capacity in cm3 4,395
Internal combustion engine power in kW 460 (625) / 6,000
Max torque(Nm) per 1/min 750 / 1800 - 5860

Performance

Top Speed 250
Acceleration 3.8

Measurements

Length/Width/Height 4,938 / 2,015 / 1,748
Width incl. mirrors (driver / passenger side) in mm 2218 (1122 / 1096)
Wheelbase in mm/Wheel turn in m 2,972 / 12.8
Ground clearance in mm 213

Weight

Weight not loaded in kg 2,385
Weight Max in kg 3,000
Permitted load in kg 690
Permitted Axel load front/rear in kg 1,410 / 1,630
Allowed unbraked trailer load / drawbar load in kg 750 / 140
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,700
Trunk capacity min.-max. in l 650 - 1870

Wheels

Tire front 295/35 ZR21 107Y XL
Tire rear 315/30 ZR22 107Y XL
Rim front 10,5J x 21 EH2
Rim rear 11,5J x 22 EH2

Consumption

Consumption urban in l/100km 17.1
Consumption non urban in l/100km 9.8
Consumption overall in l/100km 12.5
Co2 overall in g/km 286
Tank capacity in l 83

System Power

Fuel type Diesel
System power in kW (PS) 195 (265)
Max. Torque (Nm) 620
Gearbox 8-speed, automatic
Drive Type All wheel drive

Motor

Cylinder/ Valves per cylinder 6 / 4
Technical capacity in cm3 2,993
Internal combustion engine power in kW 195 (265) / 4,000
Max torque(Nm) per 1/min 620 / 2000 - 2500

Performance

Top Speed 230
Acceleration 6.5

Measurements

Length/Width/Height 4,922 / 2,004 / 1,745
Width incl. mirrors (driver / passenger side) in mm 2218 (1122 / 1096)
Wheelbase in mm/Wheel turn in m 2,975 / 12.6
Ground clearance in mm 214

Weight

Weight not loaded in kg 2,185
Weight Max in kg 2,860
Permitted load in kg 750
Permitted Axel load front/rear in kg 1,320 / 1,615
Allowed unbraked trailer load / drawbar load in kg 750 / 140
Allowed braked trailer load up to 12 % / 8 % incline in kg 2,700
Trunk capacity min.-max. in l 650 - 1870

Wheels

Tire front 275/40 R21 107 Y XL
Tire rear 315/35 R21 111 Y XL
Rim front 9,5Jx21 LM
Rim rear 10,5Jx21 LM

Consumption

Consumption urban in l/100km 7.8 - 7.7
Consumption non urban in l/100km 7.1 - 6.8
Consumption overall in l/100km 7.3 - 7.2
Co2 overall in g/km 192 - 189
Tank capacity in l 80
