BMW 3 Series Sedan (G20), technical data

THE 3

THE BMW 3 SERIES SEDAN: ENGINES & TECHNICAL DATA

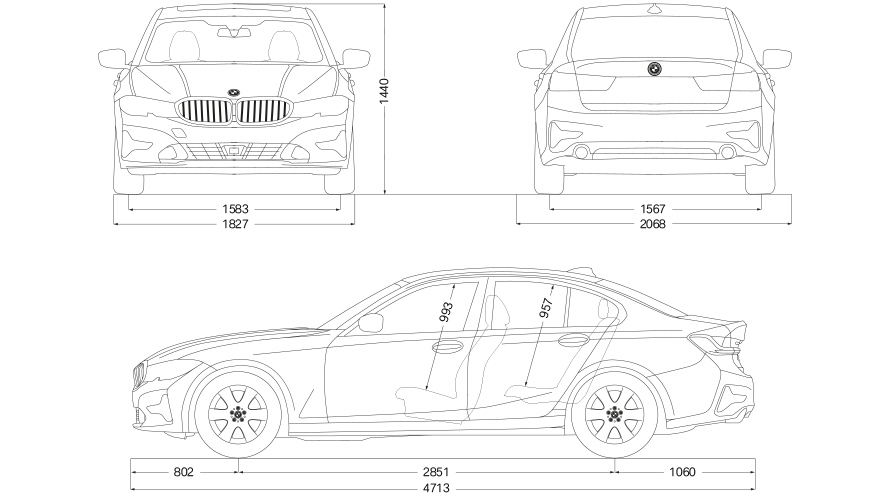

Discover the powerful petrol, diesel and hybrid engines as well as the dimensions and other technical data of the BMW 3 Series Sedan.

Read more
THE 3THE BMW 3 SERIES SEDAN: ENGINES & TECHNICAL DATA

TECHNICAL DATA OF THE BMW 3 SERIES SEDAN.

Weight

Unladen weight EU in kg 1,895
Max. permissible weight in kg 2,360
Permitted load in kg 540
Permitted axle load front/rear in kg 1,090/1,325
Luggage capacity min. (seats up or roof down) in l 375
Luggage capacity max. (seats down or roof up) in l -
Trailer load (unbraked) in kg 750
Trailer load 8% (braked) in kg 1,500
Trailer load 12% (braked) in kg 1,500

Engine

Cylinders/valves 4/4
Capacity in ccm 1,998
Stroke/bore in mm 94.6/82.0
Engine power in kW at 1/min 135 /5,000-6,500
Engine torque (Nm) at 1/min 300/1,350-4,000
Compression ratio : 1 11.0

Performance

Top speed in km/h 230
Acceleration 0–100 km/h in s 5.8
Top speed fully electric in km/h 140

Fuel consumption

Urban in l/100 km -
Extra-urban in l/100 km -
Combined in l/100 km -
CO2 combined emissions in g/km -
Electricity consumption, combined in kWh/100km -
Tank capacity, approx. in l 40

Wheels

Tyre dimensions front 225/50 R17 98 Y XL
Tyre dimensions rear 225/50 R17 98 Y XL
Wheel dimensions and material front 7.5 J x 17 inches, light-alloy
Wheel dimensions and material rear 7.5 J x 17 inches, light-alloy

Range and charging

Electric range in km -
Growth capacity of lithium–ion battery in kWh 12.0
Charging time 3,7 kW/16 A, BMW i Wallbox (80 %) h 2.6
Charging time 3,7 kW/16 A, BMW i Wallbox (100 %) h 3.6

Electric engine

Electric engine power kW at 1/min 83 /3,170
Electric Engine torque (Nm) at 1/min 265/100-2,500

Combined system power

Combined power kW 215
Combined torque Nm 420

BMW wheels and tyres EU tyre label close-up

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.
