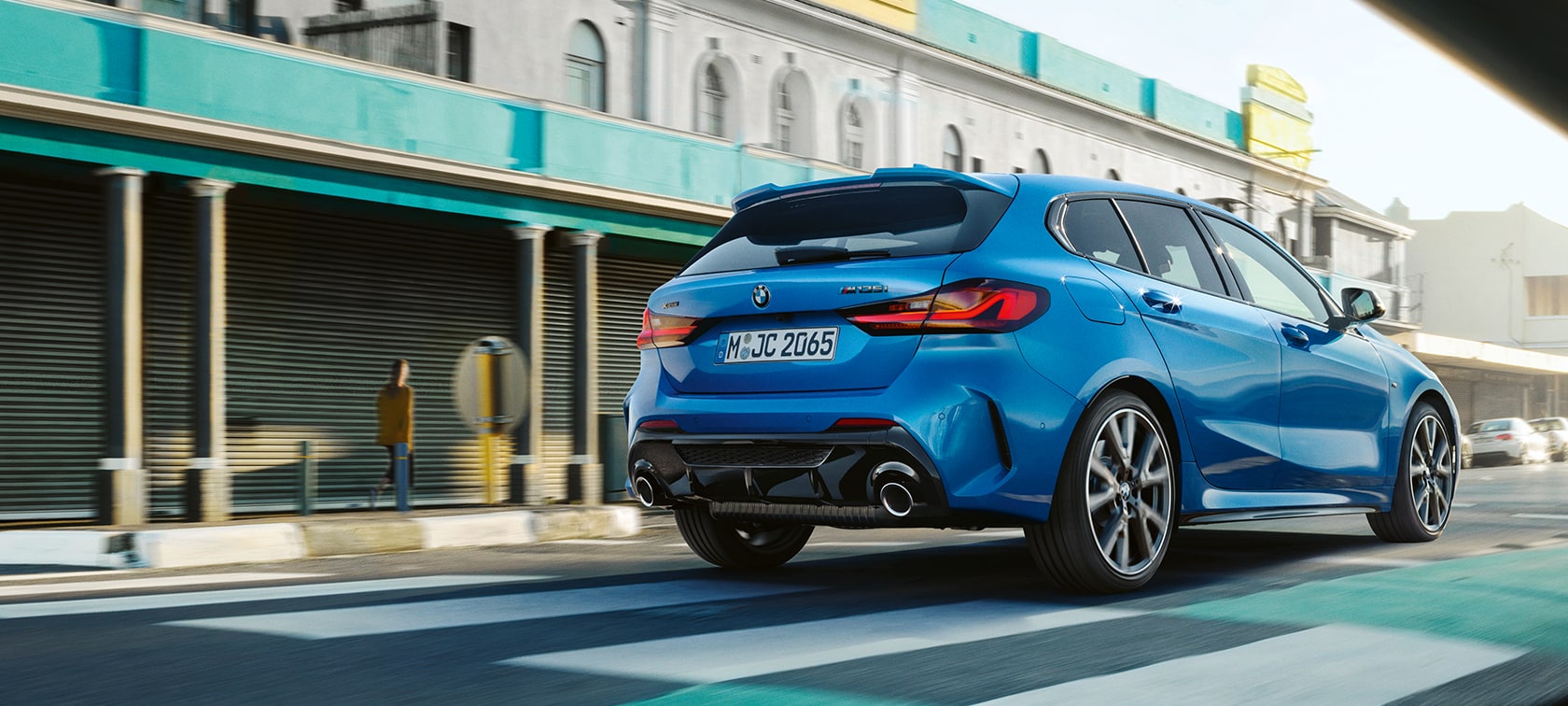

BMW 1 Series 128ti F40, three-quarter rear view driving

THE 1

BMW 1 SERIES: ENGINES & TECHNICAL DATA

Discover the powerful petrol and diesel engines as well as the dimensions and other technical data of the BMW 1 Series.

Read more
THE 1BMW 1 SERIES: ENGINES & TECHNICAL DATA

BMW 1 SERIES: TECHNICAL DATA.

Select a model
Select Transmission

Motor

Cylinder/ Valves per cylinder 4 / 4
Technical capacity in cm3 1,998
Stroke/Drilling in mm 94.6 / 82
Internal combustion engine power in kW (PS) 225 (306) / 5000-6250
Max torque(Nm) per 1/min 450 / 1750-4500
Compression:1 9.5

Performance

Top Speed 250
Acceleration 4.8

Measurements

Length/Width/Height 4,319 / 1,799 / 1,434
Width incl. mirrors (driver / passenger side) in mm 2081 (1045 / 1036)
Wheelbase in mm/Wheel turn in m 2,670 / 11.4
Ground clearance in mm 153
Measurements
Measurements

Weight

Weight not loaded in kg 1,600
Weight Max in kg 2,085
Permitted load in kg 560
Permitted Axel load front/rear in kg 1,120 / 1,020
Trunk capacity min.-max. in l 380 - 1200

Wheels

Tire front 225/40 R18 92 Y XL
Tire rear 225/40 R18 92 Y XL
Rim front 8Jx18 LM
Rim rear 8Jx18 LM

Consumption

Consumption urban in l/100km 9.1
Consumption non urban in l/100km 6.5
Consumption overall in l/100km 7.4
Co2 overall in g/km 170
Tank capacity in l 50
