THE BMW i4:
ENGINE & TECHNICAL DATA.

The key facts and figures on the BMW i4 at a glance: engine, energy consumption, electric range and dimensions. Check out all the performance data such as horsepower, torque and acceleration.

Read more
THE i4THE BMW i4: <br> ENGINE &amp; TECHNICAL DATA.
    BMW i4
    Find a BMW Dealer

    TECHNICAL DATA OF THE BMW i4.

    Select model
    Select Transmission

    System Power

    Powertrain type Electric
    Power in kW 210 (286)
    Torque in Nm 400
    Gearbox 1-speed, automatic
    Drivetrain Rear-wheel drive

    BMW eDrive

    Continous power in kW (hp) 80 (109)
    Nominal torque in Nm 400

    Performance

    Maximum speed in km/h 190
    Acceleration 0–100 km/h in s 6

    Measurements

    Length/Width/Height 4,783 / 1,852 / 1,448
    Width incl. mirrors (driver / passenger side) in mm 2073 (1042 / 1031)
    Wheelbase in mm 2,856 / 12.5
    Ground clearance in mm 125

    Weight

    Curb weight in kg 2,065
    Maximum weight in kg 2,545
    Permitted load in kg 555
    Permitted Axel load front/rear in kg 1,140 / 1,525
    Allowed unbraked trailer load / drawbar load in kg 750 / 75
    Luggage capacity in l 470 - 1290

    Wheels

    Tire front 225/55 R17 101 Y XL
    Tire rear 225/55 R17 101 Y XL
    Rim front 7,5Jx17 LM
    Rim rear 7,5Jx17 LM

    System Power

    Powertrain type Electric
    Power in kW 250 (340)
    Torque in Nm 430
    Gearbox 1-speed, automatic
    Drivetrain Rear-wheel drive

    BMW eDrive

    Continous power in kW (hp) 105 (143)
    Nominal torque in Nm 430

    Performance

    Maximum speed in km/h 190
    Acceleration 0–100 km/h in s 5.7

    Measurements

    Length/Width/Height 4,783 / 1,852 / 1,448
    Width incl. mirrors (driver / passenger side) in mm 2073 (1042 / 1031)
    Wheelbase in mm 2,856 / 12.5
    Ground clearance in mm 125

    Weight

    Curb weight in kg 2,125
    Maximum weight in kg 2,605
    Permitted load in kg 555
    Permitted Axel load front/rear in kg 1,140 / 1,550
    Allowed unbraked trailer load / drawbar load in kg 750 / 75
    Luggage capacity in l 470 - 1290

    Wheels

    Tire front 245/35 R20 95 Y XL
    Tire rear 255/35 R20 100 Y
    Rim front 8,5Jx20 LM
    Rim rear 9Jx20 LM

    System Power

    Powertrain type Electric
    Power in kW 400 (544)
    Torque in Nm 795
    Gearbox 1-speed, automatic
    Drivetrain All-wheel drive

    BMW eDrive

    Continous power in kW (hp) 125 (170)
    Nominal torque in Nm 795

    Performance

    Maximum speed in km/h 225
    Acceleration 0–100 km/h in s 3.9

    Measurements

    Length/Width/Height 4,783 / 1,852 / 1,448
    Width incl. mirrors (driver / passenger side) in mm 2073 (1042 / 1031)
    Wheelbase in mm 2,856 / 12.5
    Ground clearance in mm 125

    Weight

    Curb weight in kg 2,290
    Maximum weight in kg 2,735
    Permitted load in kg 520
    Permitted Axel load front/rear in kg 1,270 / 1,550
    Allowed unbraked trailer load / drawbar load in kg 750 / 75
    Luggage capacity in l 470 - 1290

    Wheels

    Tire front 245/45 R18 100 Y XL
    Tire rear 255/45 R18 103 Y XL
    Rim front 8,5Jx18 LM
    Rim rear 9Jx18 LM

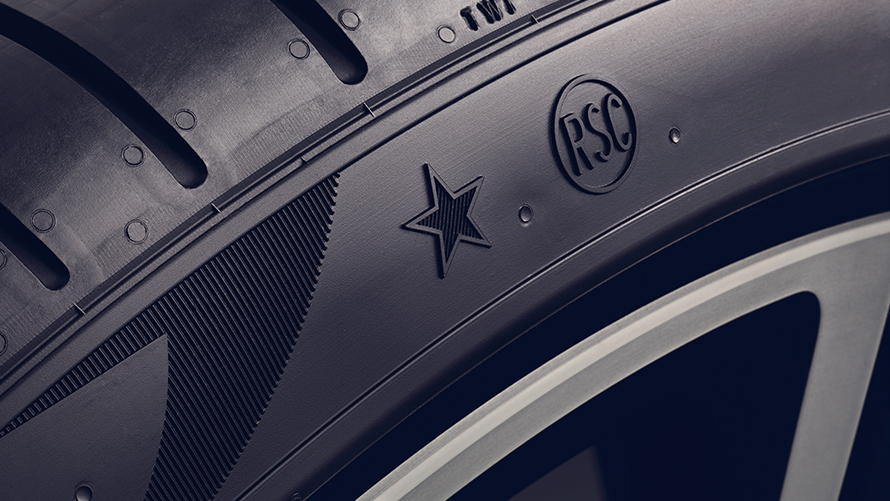

    BMW wheels and tyres EU tyre label close-up

    BMW WHEELS & TYRES.

    We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.

    * Electrical consumption and range is based upon the Combined Driving Test Cycle in accordance with ADR 81/02 on purpose built test vehicles and is provided for comparative purposes only. Actual range will vary in real world conditions depending on many factors including traffic conditions, driving habits, prevailing conditions and your vehicle’s equipment, condition and use.
